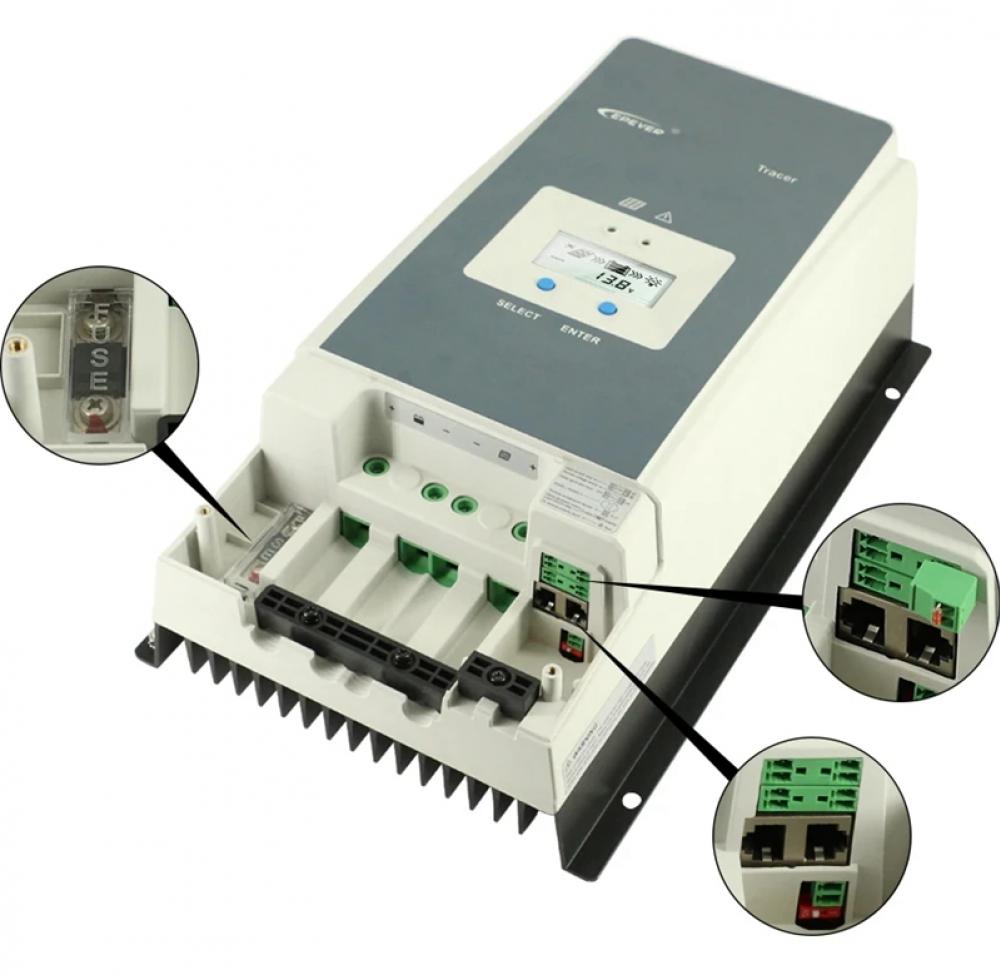

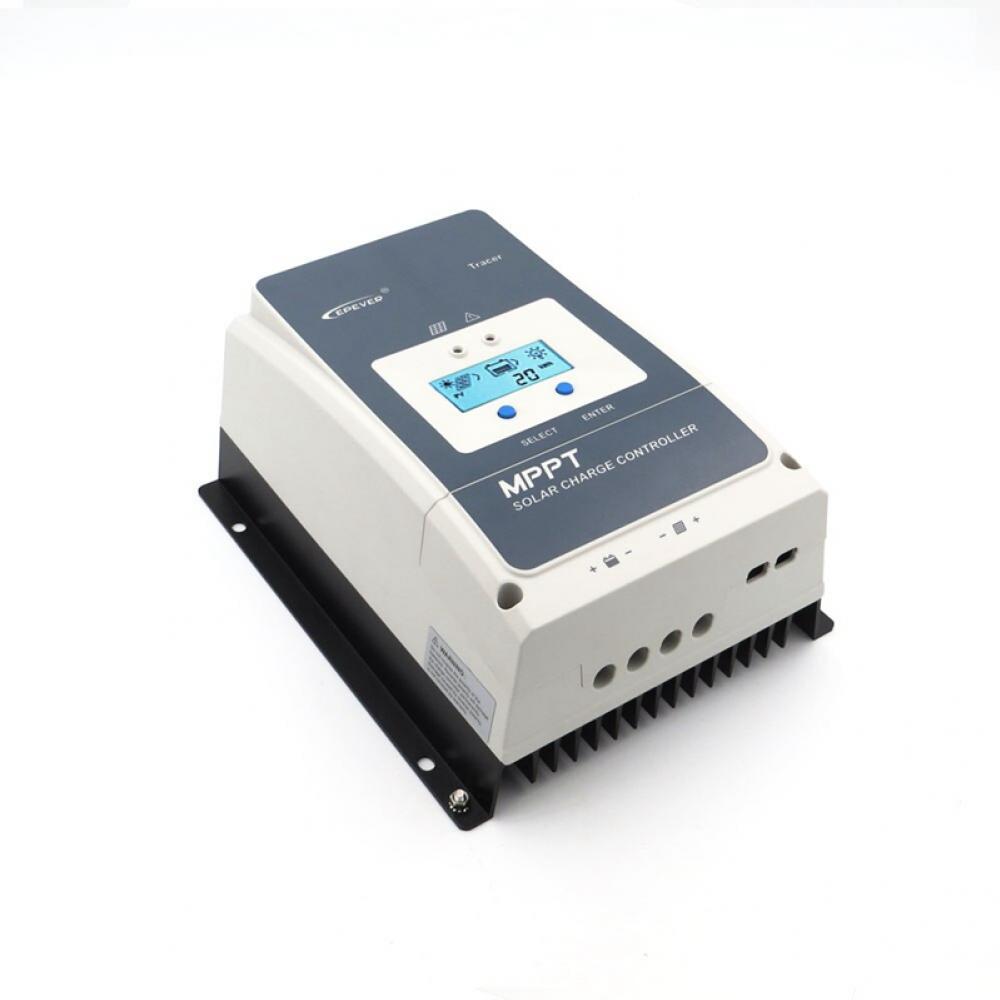

EPEVER Tracer 6420AN 60A MPPT Solar Charge Controller 12V/24V/36V/48V

$599.00

EPEVER Tracer 6420 AN series controller, based on multiphase synchronous rectification technology (MSRT) and advanced MPPT control algorithm, with dual-core processor architecture and common negative design, has the features of high response speed, high reliability, and high industrial standard.

Category:

Description

Features:

CE certification(LVD EN/IEC62109, EMC EN61000-6-1/3)

High quality & low failure rate components of ST and Infineon to ensure the product’s life

The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP

Auto control system to limit the charging power & current go over the rated value

Battery temperature compensation function, Real-time energy recording and statistical function, Automatic over-temperature power reduction function

Load relay control external load switch signal to realize diversified load work modes All-around electronic protections, including overcharging, over discharging, and PV reverse polarity protection, effectively ensure the safer and more reliable operation of the solar system for a longer service time.

MODEL: TRACER 6420AN 12VDC / 24VDC /36VDC/48VDC Auto select

Rated Battery Current 60A

Max. Solar Input Voltage 150VDC

Max. PV input power:12V/ 750W , 24V /1500W, 36V/2250W, 48V/3000W

Dimension 340x 236 x 119 / mm

Weight 4.5kg
