Description

Features:

• 12V 40Amp 8 Stage Charging System

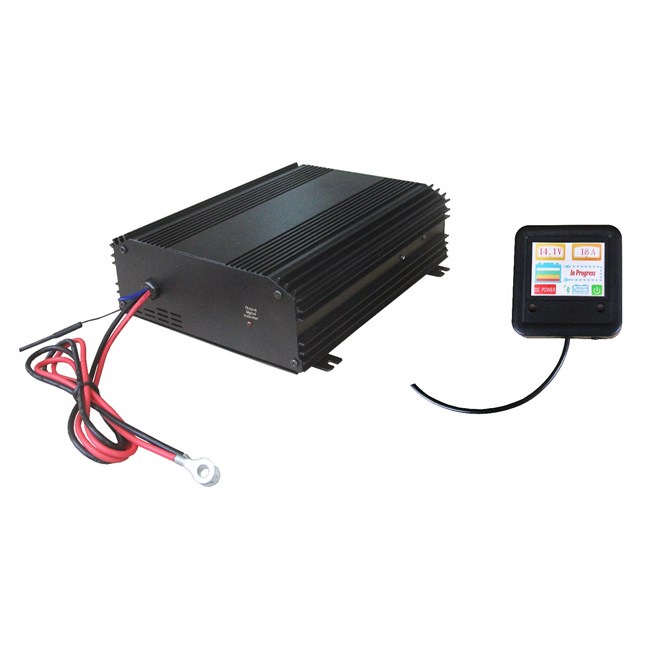

• Bluetooth connected 2.4inch colour LCD monitor with touch screen function
• LED light to indicate whether charger is working or not
• Suitable for charging 12V Gel, Lead Acid, AGM, Calcium and 12V Lithium automotive batteries.Do not attempt to recharge dry cell batteries
• Ring terminal wires for permanent connection to batteries
• Faulty Battery warning shown on LCD screen
• 13.5V 40A DC power supply mode with short circuit and overload protection
• Zero Volt starting battery charging
• Inbuilt protection systems for safe operation
• Mounting brackets for permanent installation.

TECHNICAL SPECIFICATIONS Part Number: PTC12V40AL

• Charger Type: Automatic flooded chemistry detection, switch mode, 8 stage battery charger
• Lithium Charging Compatible. 12V Lithium Batteries only, need to cut looped blue wire Compatible rechargeable battery types 12V Flooded lead acid, AGM, GEL, Maintenance free, Calcium and 12V Lithium. DO NOT ATTEMPT TO CHARGE DRY CELL BATTERIES
• Bluetooth Signal Aerial Wire COMES OUT OF THE FRONT OF THE UNIT. DO NOT CUT THIS AERIAL WIRE
• Zero volt start Yes DC Power Supply 13.5V 40A with overload and short circuit protection
• Reverse connection, overload, over-voltage, over-charging, over-temperature protection
• Ambient operating temperature -15? to +50? Product casing Aluminium Maximum
• Recommended battery charging capacity 80Ah to 400Ah 240VAC
• Cable Length 2m
