Description

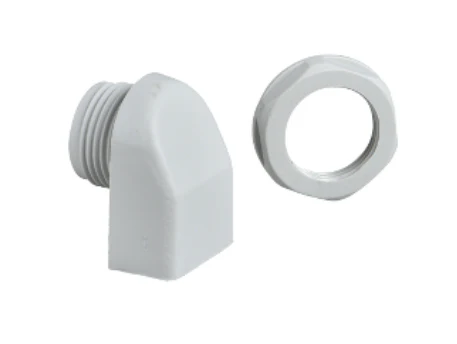

This ventilation louvre allows air to pass naturally through a wall panel, ideal for adding ventilation to cassette access doors to meet the new self containment standards with internally vented cassettes.

Material: Polyamide
Cut-out dimensions: 19 mm
Height: 30 mm
Width: 23.5 mm
Depth: 22 mm

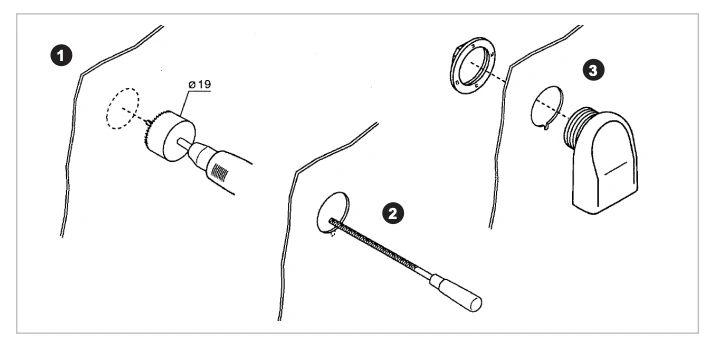

Easily installed by drilling a 19mm hole and screwing on the lock nut. Add a silcone sealant such as Sika 291. For insulated wall panels a larger hole may need to be drilled in the internal panels to allow for the nut.
